Fire Pumps & Controllers

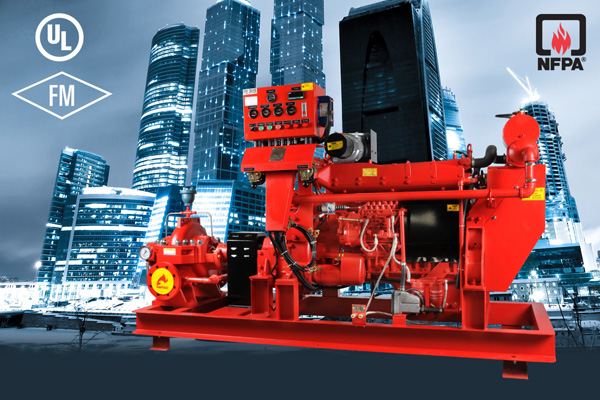

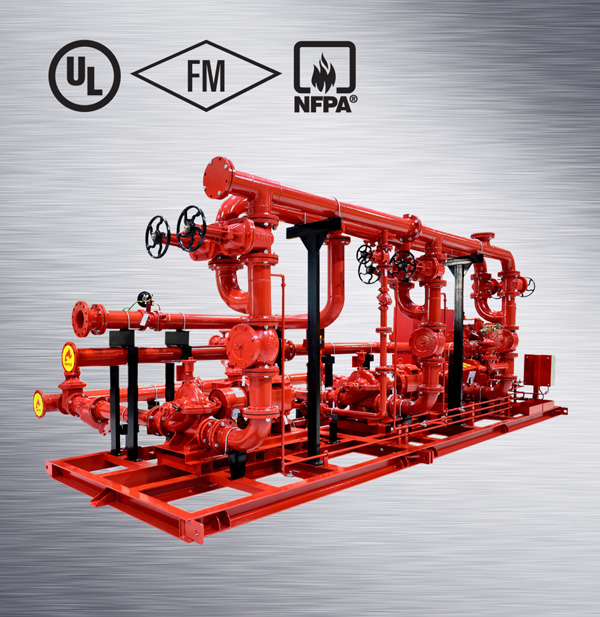

NAFFCO package fire pump system consists of pumps, driver, controllers and accessories mounted on a common base frame. High quality UL / FM certified components are used in these systems complying with the requirements of NFPA 20. All necessary wiring between controllers and drivers are done at factory prior to shipment. The automatic air release valve, casing relief valve, suction gauge & discharge gauge are mounted on fire pumps and other accessories are mounted on pre-constructed interconnecting piping as required by NFPA 20. Pressure sensing lines are pre-installed on Electric, Diesel, and Jockey Controllers as per NFPA 20 requirements.
These systems are subjected to rigorous performance tests at factory as per UL, FM & NFPA standards to ensure proper performance of the system as per the design requirements. For completing the installation of these pre-engineered ‘ready to install’ packages the installing contractor only needs to grout the structural base, connect the suction & discharge pipes and incoming power.
