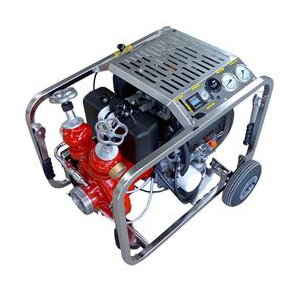

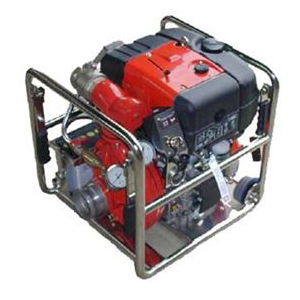

Smaller sibling to our D600, but still great performance and value.

Engine Specifications

Kohler/Lombardini 15LD500, single cylinder diesel 4 stroke, Direct fuel injection, Forced air-cooled with fan flywheel, Full pressure lubrication through lobe pump, flyweight type governor to prevent over speeding. Engine displacement 505cc, Bore 87mm, Stroke 85mm, Max torque 26 Nm @ 2400 rpm,
Electric start with manual recoil back up
Built in decompresser
Fuel Tank: 4 litre plastic allows over 2 hour continuous running.

Pump Specifications
Type: Transfer – Supply – Firefighting
Intake: 4″ (100mm) BSRT
Discharge: Single outlet, 50mm Ball Valve BS 2 ½” (64mm) Instantaneous
Volute Body And Head: Aluminium Alloy CC601 heat-treated to T6 Hardness
Impeller: Aluminium Alloy CC601 fully enclosed.
Wear Rings: Long Wearing PFPT, economical to replace.
Shaft Seal: Spring-loaded mechanical carbon ceramic
Priming: Exhaust Ejector, fast and easy to use. Will prime 3 metres in 30 seconds

Frame: Stainless Steel Full Cage
Dimensions: 530mm (L) x 490mm (W) x 500mm (H)
Weight: 88kg (incl battery)

Inlets and Outlets can be custom machined as required.
Marine version also available for use in harsh salt-water applications.
